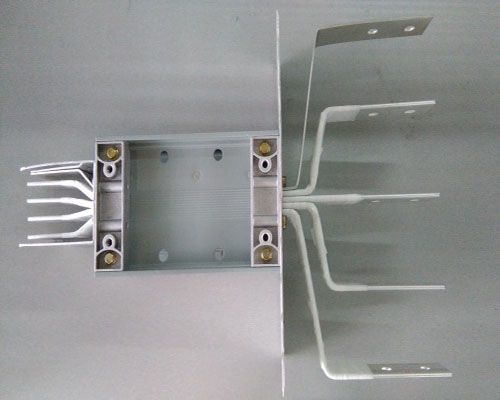

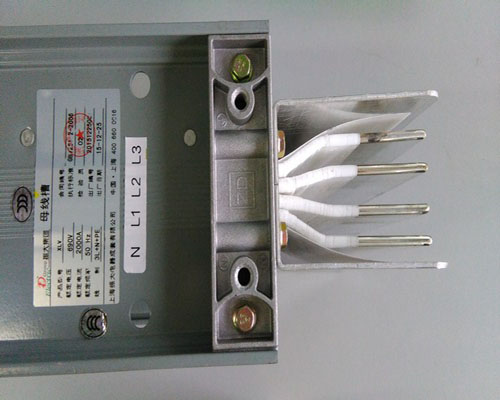

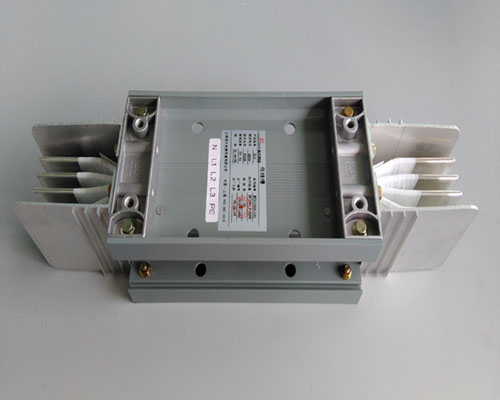

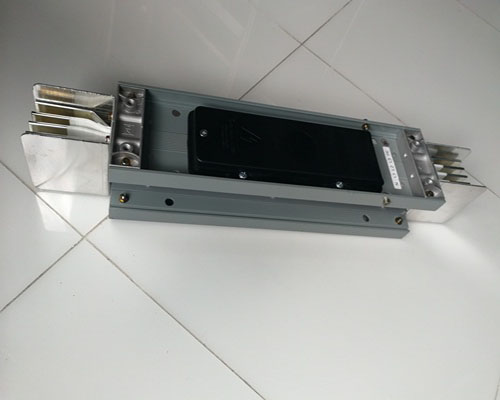

Busduct Trunking  System

Model:XLVC

Current range: 400~6000A

Conductor: High conductivity Cu or AL

Insulation: Mylar or Epoxy powder

IP degree: IP54 or IP65 as standard

Enclosure: Extruded Aluminum Alloy


  • Compact busduct features:

    1. Insulation voltage upto 1000 V
    2.Standard lengths of 4m/3m/2m/1m
    3. System Voltage: 690V
    4. Conductor material: High conductivity Cu or AL
    5. Halogen free, Class-B-Mylar or Class-F-Epoxy powder coating
    6. Configuration of 3P3W / 3P4W / 3P5W with or without integral earth
    7. Can be re-used after disassemble

    Competitive Advantages:

    1 Well and High Quality Control
    2 Prompt Delivery
    3 Customer's Design and Logo are Welcome
    4 Competitive Prices
    5 Small Order Acceptable
    6 ODM Accepted
    7 OEM Accepted
    8 Packaging Detail Standard export packaging or customized packaging

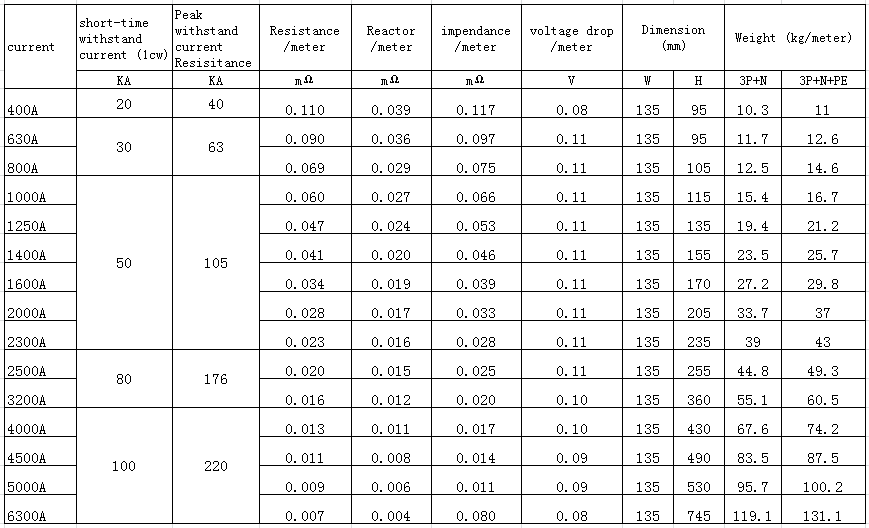

  •          XLVC busduct technical data

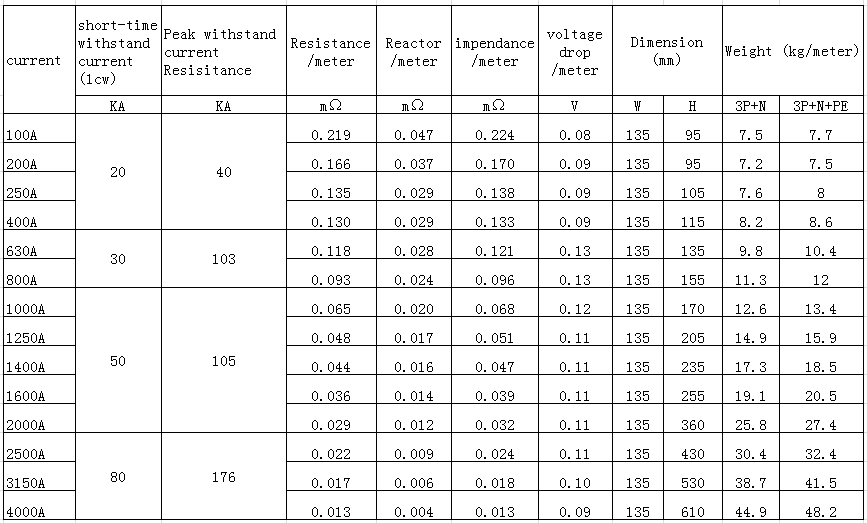

              XLVA busduct technical data

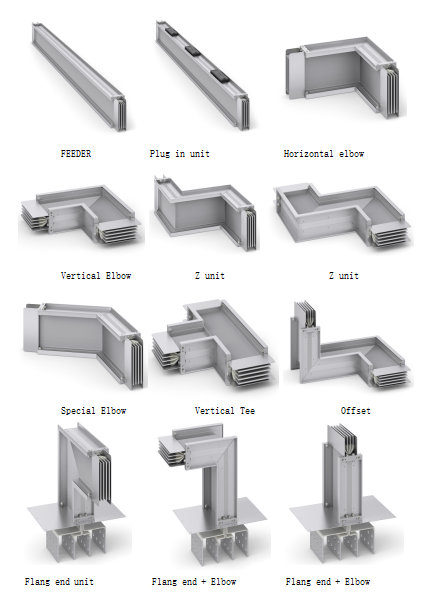

  •                             busbar system



  • Certificates
