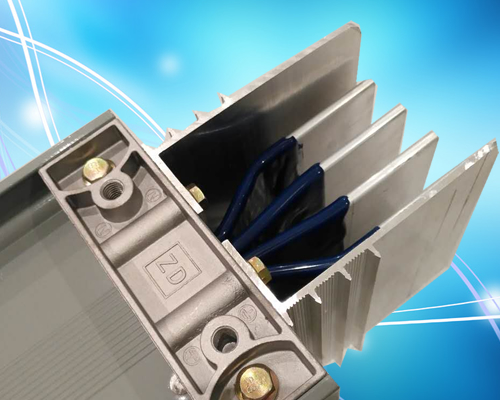

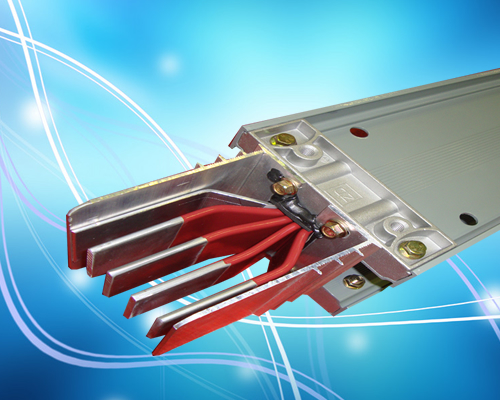

Class F Epoxy Busduct Trunking System

Current range: 100A~6000A

Conductor:  Aluminium/copper

Insulation:  Epoxy

IP degree:  IP54

HS code:  8544422900


  • Compact busduct features:

    1 Current Rating: 100A~5000A (AL)or 400A~ 6300 A(CU)
    2 System Voltage: 690V
    3 Insulation voltage:upto 1000 V
    4 Frequency:50Hz/60Hz
    5 Conductor material: High conductivity Cu or AL
    6 Extruded aluminum alloy house
    7 Halogen free, Class-B-Mylar or Class-F-Epoxy powder coating
    8 Ingress protection: IP54 or IP65 as standard
    9 Standard lengths of 4m/3m/2m/1m
    10. Configuration of 3P3W / 3P4W / 3P5W with or without integral earth
    11. Can be re-used after disassemble

    bus duct

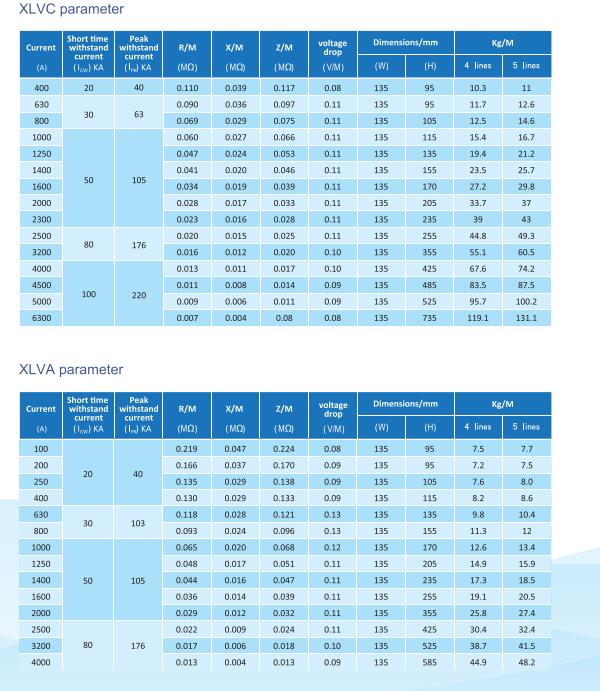

  •                                         bus duct technical data

  •                             epoxy busduct

  • resin cast busduct
